OptiMix® Reactor – Advanced Mixing & Heat Transfer
Requirements for mixing and reaction processes strongly depend on product characteristics such as viscosity, density and phase composition.

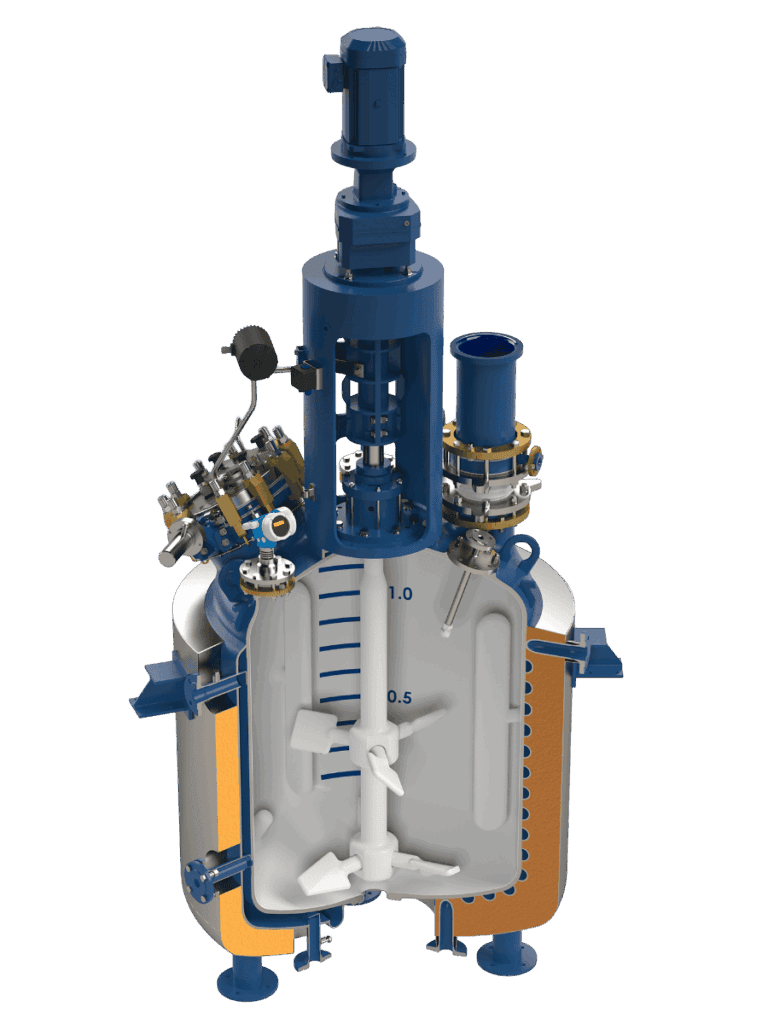

Jongia, as part of De Dietrich Process Systems, offers the OptiMix® reactor as an advanced solution within its mixing technology portfolio. This glass-lined reactor design significantly enhances both mixing performance and heat transfer.

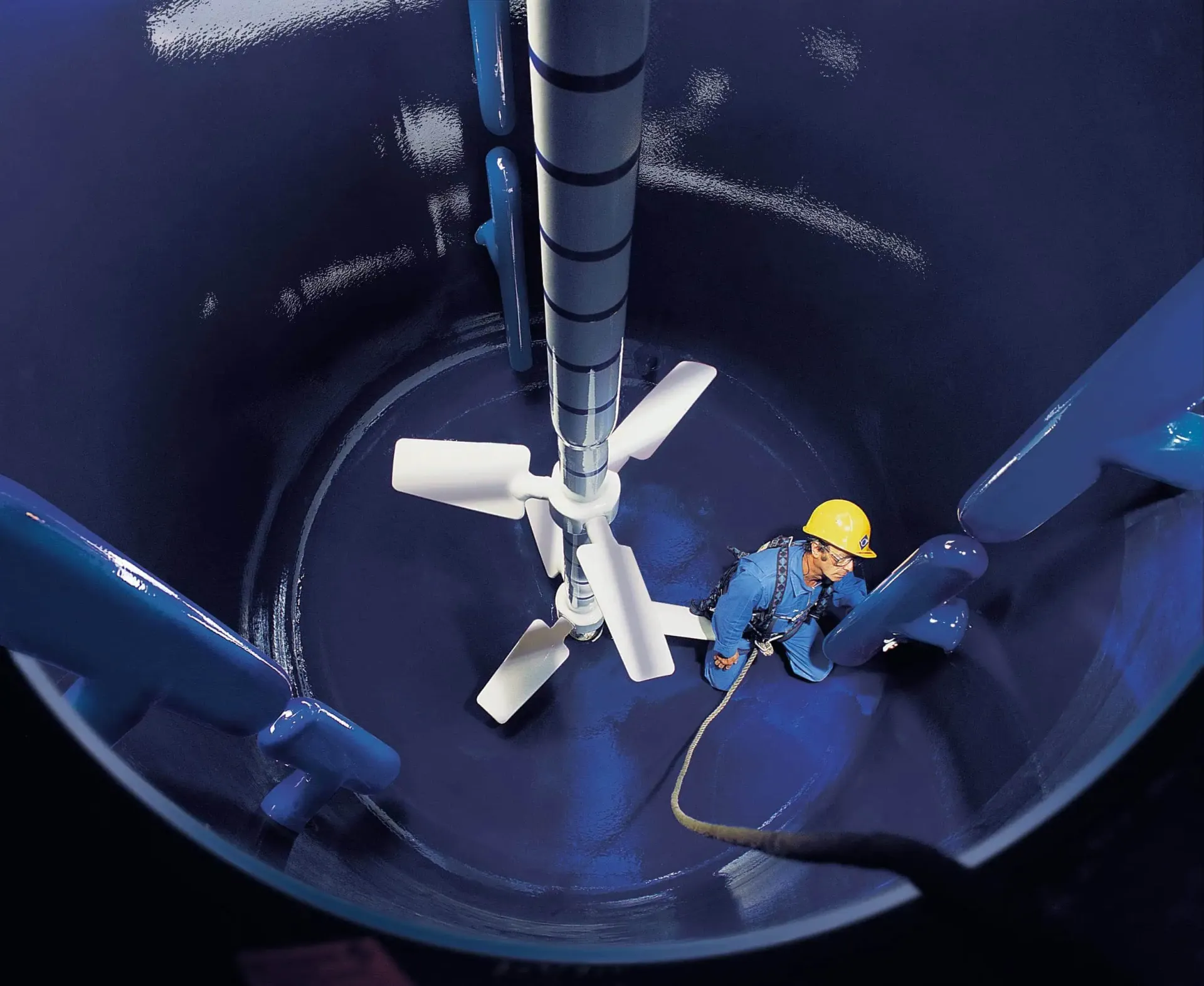

By integrating three baffles directly into the vessel wall, an optimized flow pattern is created, resulting in improved circulation, reduced mixing time and enhanced mass transfer.
Compared to conventional reactor designs, the OptiMix® concept minimizes dead zones and prevents vortex formation. This leads to a more homogeneous product, reduced material loss and improved overall process efficiency.
In addition, all nozzles remain available for process integration, instrumentation and cleaning systems. This offers maximum flexibility and simplifies the installation of sampling devices, spray balls and other process components.
The reactor is equipped with an integrated temperature sensor in the bottom head, enabling accurate measurement and control of even very small volumes. Combined with the DD3009 glass lining, this ensures excellent corrosion resistance and easy cleaning.
The OptiMix® reactor can be equipped with a GlasLock® agitator and is fully compatible with standard DIN reactor configurations. Components are interchangeable, allowing seamless integration into existing installations.
The OptiMix®-HE (Heat Exchange) version further enhances thermal performance by circulating thermal fluid through the integrated baffles, achieving up to 25% higher heat transfer efficiency compared to conventional systems.
For detailed technical information, visit the official De Dietrich OptiMix® page:
https://www.dedietrich.com/en/equipment/products/optimixr-reactor
Bio-based
Chemical
Pharma

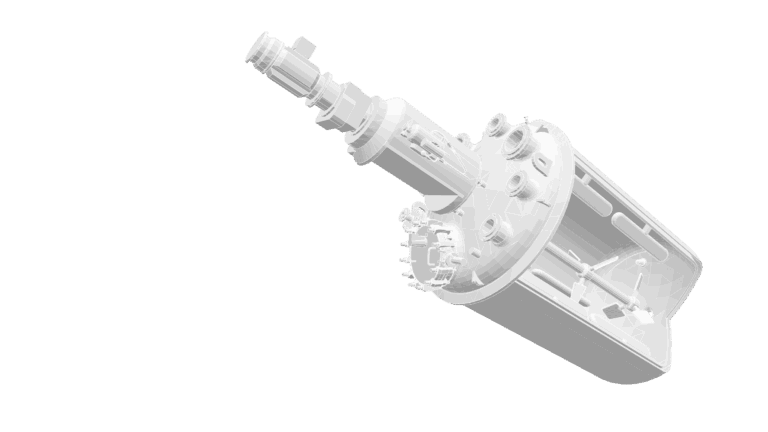

This video demonstrates the OptiMix® reactor technology, highlighting the optimized flow pattern created by the integrated wall baffles and its effect on mixing efficiency and heat transfer.
Reactor Posts
Jongia and OptiMix from De Dietrich
Jongia Mixing Technology is now integrated into the De Dietrich Process Systems’ OptiMix Reactor & Agitator System. The OptiMix® Reactor & Agitator is an exclusive product range from De Dietrich, designed to perform in the most hazardous environments. Its enamel coating offers
Frequently Asked Questions
What is the OptiMix® reactor?
The OptiMix® reactor is a glass-lined reactor developed by De Dietrich Process Systems, featuring three integrated wall baffles that significantly improve mixing performance and heat transfer compared to conventional reactor designs.
How does the OptiMix® reactor improve mixing performance?
The integrated wall baffles create an optimized flow pattern inside the vessel, resulting in improved circulation, reduced mixing time and better mass transfer throughout the entire reactor volume.
What are the main advantages of the OptiMix® design?
Key advantages include improved heat and mass transfer, elimination of dead zones, prevention of vortex formation, easier cleaning and full availability of nozzles for process integration and instrumentation.
What is the OptiMix®-HE version?
The OptiMix®-HE (Heat Exchange) version is an advanced configuration that uses thermal fluid circulating through the baffles to increase heat transfer performance, achieving up to 25% higher efficiency compared to conventional systems.
Is the OptiMix® reactor compatible with existing reactor systems?
Yes, the OptiMix® reactor is designed according to standard DIN geometries, and its components are interchangeable with standard reactors of the same size, allowing integration into existing installations.
